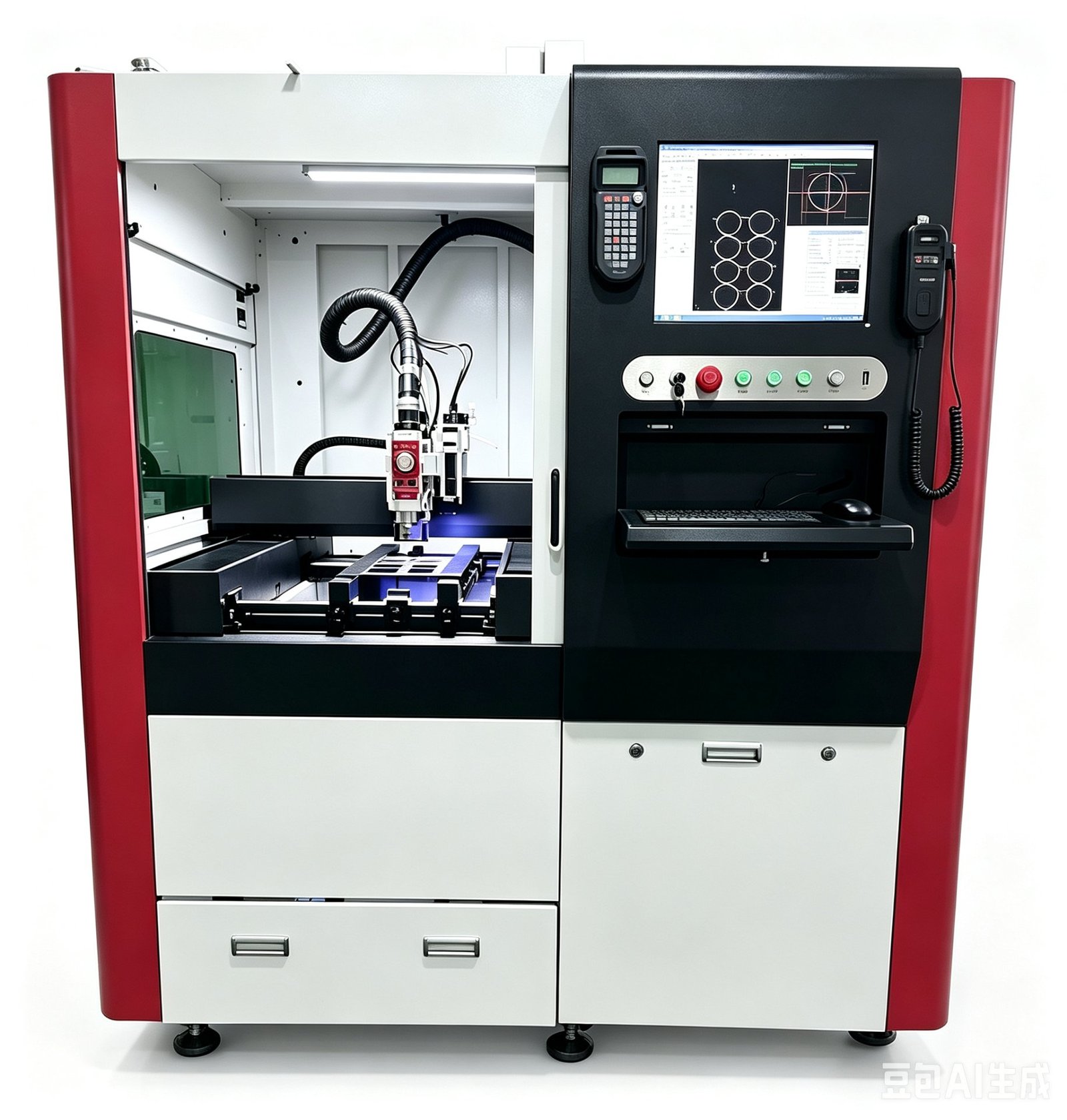

FIBER MARKING Series
PRODUCT INTRODUCTION
DM-F Series 1064nm air-cooled fiber markers — portable enclosed (DM-F30SE), industrial desktop (DM-F30I), and standard configurations. JPT / Raycus / MAX / IPG sources at 30W–100W, up to 300×300mm area. ≤7000mm/s with 0.001mm repeat accuracy, 0.01mm minimum line width. For automotive traceability, electronics serialization, and medical device UDI.
MAIN PARAMETERS
| Model | DM-F30 | DM-F50 | DM-F100 |
|---|---|---|---|
| Laser Power | 30W | 50W | 100W |
| Marking Area | 110 x 110mm | 200 x 200mm | 300 x 300mm |
| Laser Wavelength | 1064nm | ||
| Marking Speed | ≤7000 mm/s | ||
| Minimum Line Width | 0.01mm | 0.01mm | 0.015mm |
| Pulse Frequency | 1-4000 kHz | ||
| Cooling | Air Cooled | ||
| Graphic Format Supported | AI, PLT, DXF, BMP, DST, DWG, LAS, DXF | ||
| Laser Source Brand | JPT, Raycus, MAX, IPG (Optional) | ||
HOT-SELLING MODELS

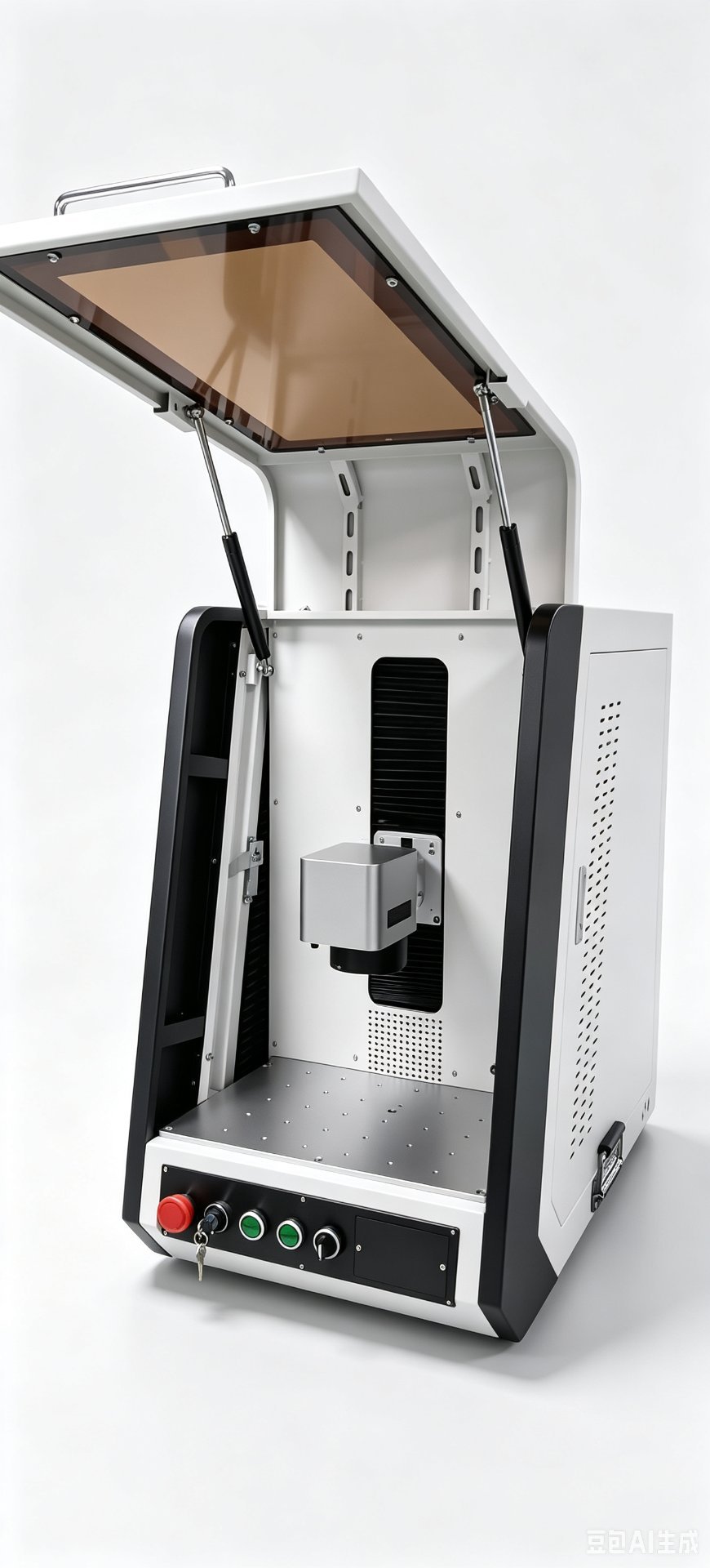

DM-F30SE
Portable Enclosed Fiber Marker
Compact footprint with flip-up safety cover — plug-and-play for small workshops and on-site serial marking. No training required.

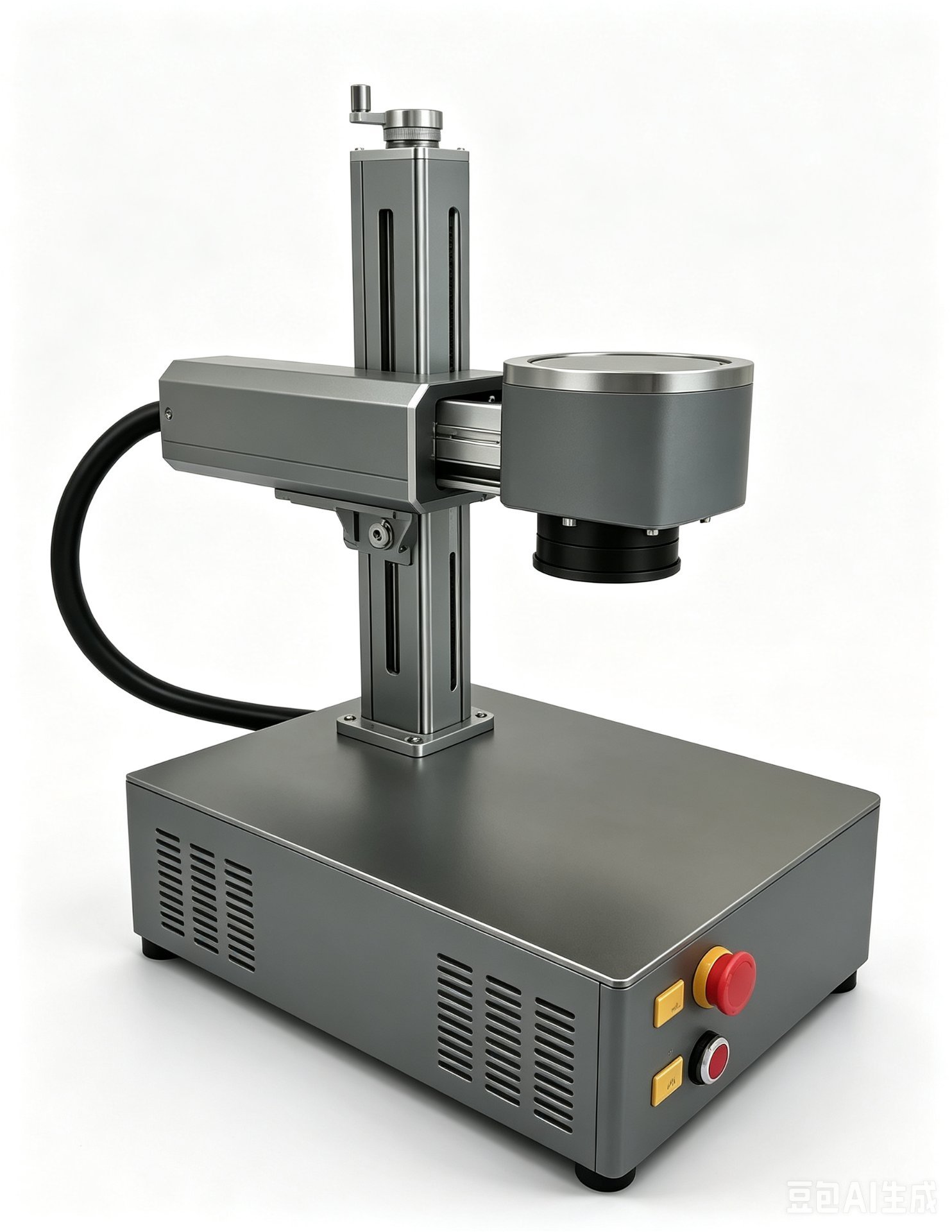

DM-F30I
Industrial Desktop Fiber Marker
Industrial desktop with Z-axis travel and rotary axis ready. Heavy-duty chassis built for deep engraving and high-volume metal part serialization.
CORE ADVANTAGES
High-Speed Precision Marking
≤7000mm/s marking speed with 0.001mm repeat accuracy and 0.01mm minimum line width — built for high-volume serialization.
Permanent & Tamper-Proof
Direct material engraving — no inks, no labels. Resistant to heat, chemicals, and abrasion. Essential for automotive and aerospace traceability.
Multiple Marking Effects
Black annealing, white etching, deep engraving, MOPA color marking on stainless steel & titanium — one machine delivers them all.
100K-Hour Maintenance-Free
Air-cooled fiber source. No lamp changes, no alignment, no consumables — install it and focus on production.

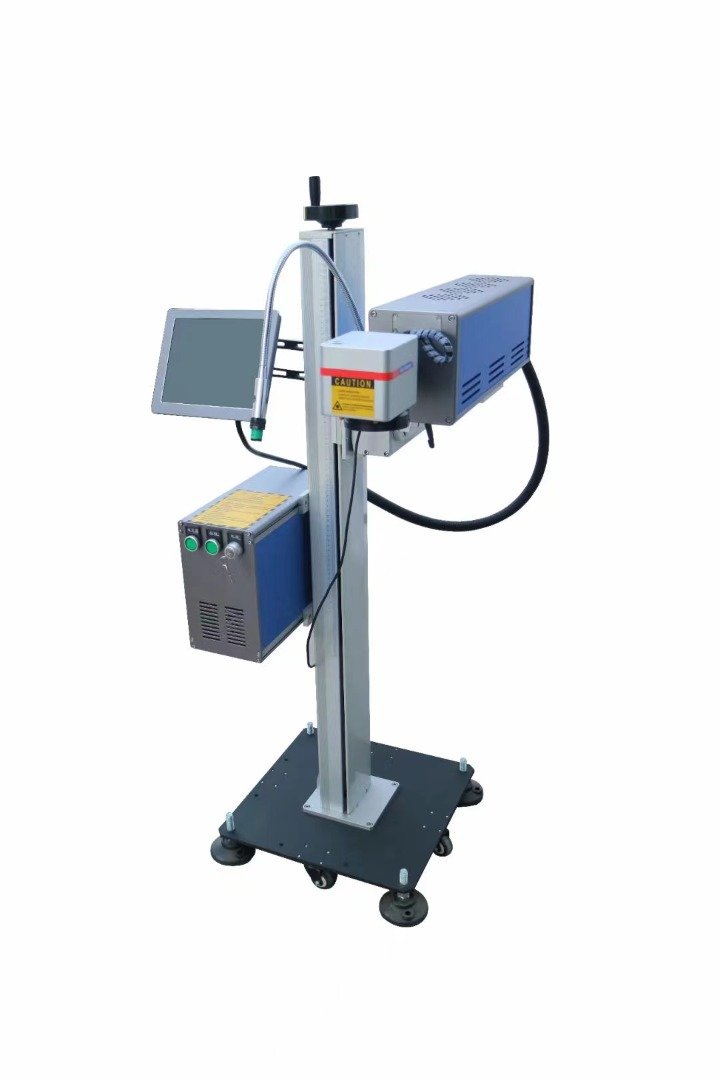

CO2 MARKING Series
PRODUCT INTRODUCTION
DM-C Series 10.6μm CO2 RF markers — portable handheld (DM-C30P), floor-standing workstation (DM-C60W), and standard configurations. Reci / DAVI / WEIJU tubes at 30W–60W, up to 500×500mm area. ≤7000mm/s with 0.03mm line width. Optimized for non-metals: wood, leather, acrylic, glass, paper, textiles, and coated surfaces — no pre-treatment required. For food & pharma date coding, cosmetics, garment tags, and promotional products.
MAIN PARAMETERS
| Model | DM-C30 | DM-C40 | DM-C60 |
|---|---|---|---|
| Laser Power | 30W | 40W | 60W |
| Processing Format | 70×70mm – 500×500mm (Optional) | ||
| Laser Wavelength | 10.6μm | ||
| Laser Repetition Rate | ≤25 kHz | ||
| Marking Line Speed | ≤7000 mm/s | ||
| Minimum Line Width | 0.03mm | ||
| Cooling | Forced Air Cooling / Water Cooling | ||
| Graphic Format Supported | AI, PLT, DXF, BMP, DST, DWG, LAS, DXF | ||
| Laser Source Brand | Reci, DAVI, WEIJU (Optional) | ||
HOT-SELLING MODELS

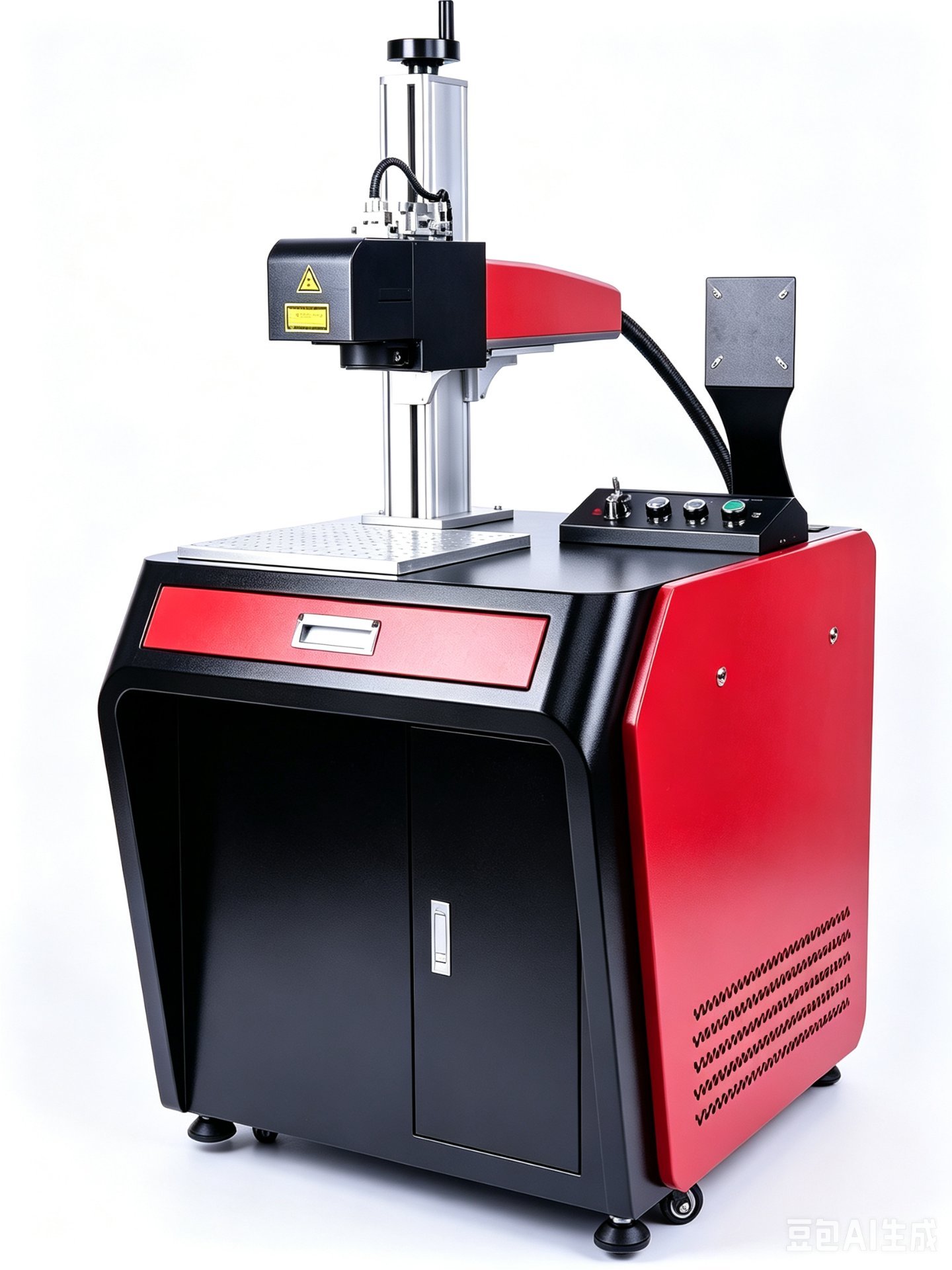

DM-C60W
Floor-standing CO2 Workstation
Floor-standing Z-axis column on an open frame — large 300x300mm work area for full-size packaging materials. The go-to workstation for food date coding, pharma packaging, and large-format promotional products.

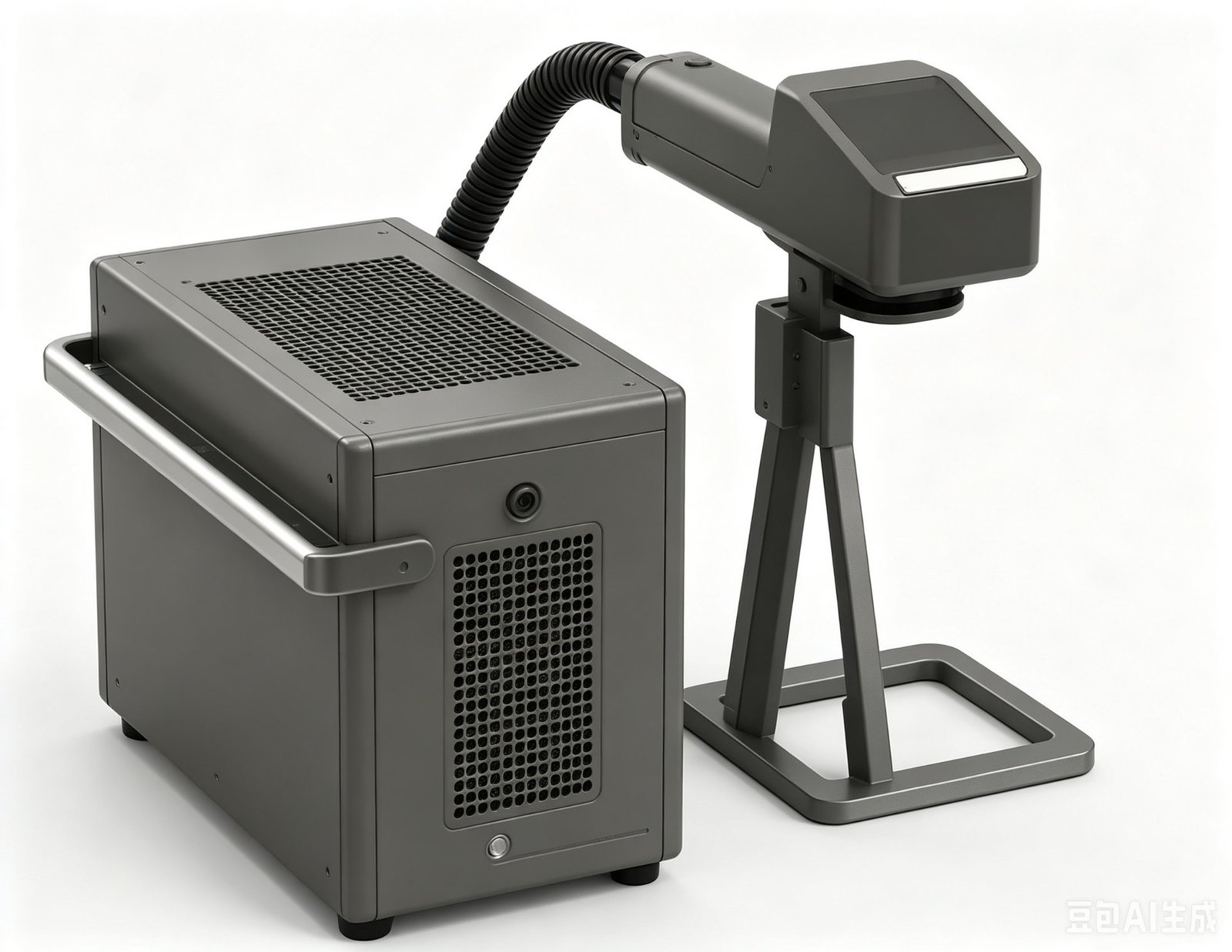

DM-C30P
Portable Handheld CO2 Marker
Portable handheld with articulated mounting — mark large, irregular, or immovable workpieces on-site. Perfect for construction materials and oversized goods.
CORE ADVANTAGES
Wide Material Compatibility
10.6μm wavelength optimally absorbed by wood, leather, acrylic, glass, paper, textiles, rubber & coated surfaces — no pre-treatment needed.
Clean & Contact-Free
Non-contact thermal marking. Zero consumables — no ink, no labels, no ribbons. Permanent, smudge-proof results with zero recurring cost.
Food & Pharma Compliant
Chemical-free marking meets FDA / CE standards. Trusted for food packaging date codes and pharmaceutical batch traceability.
Easy Production Line Integration
Compact footprint with forced air or water cooling options. Plug-and-play into any existing conveyor or packaging line.

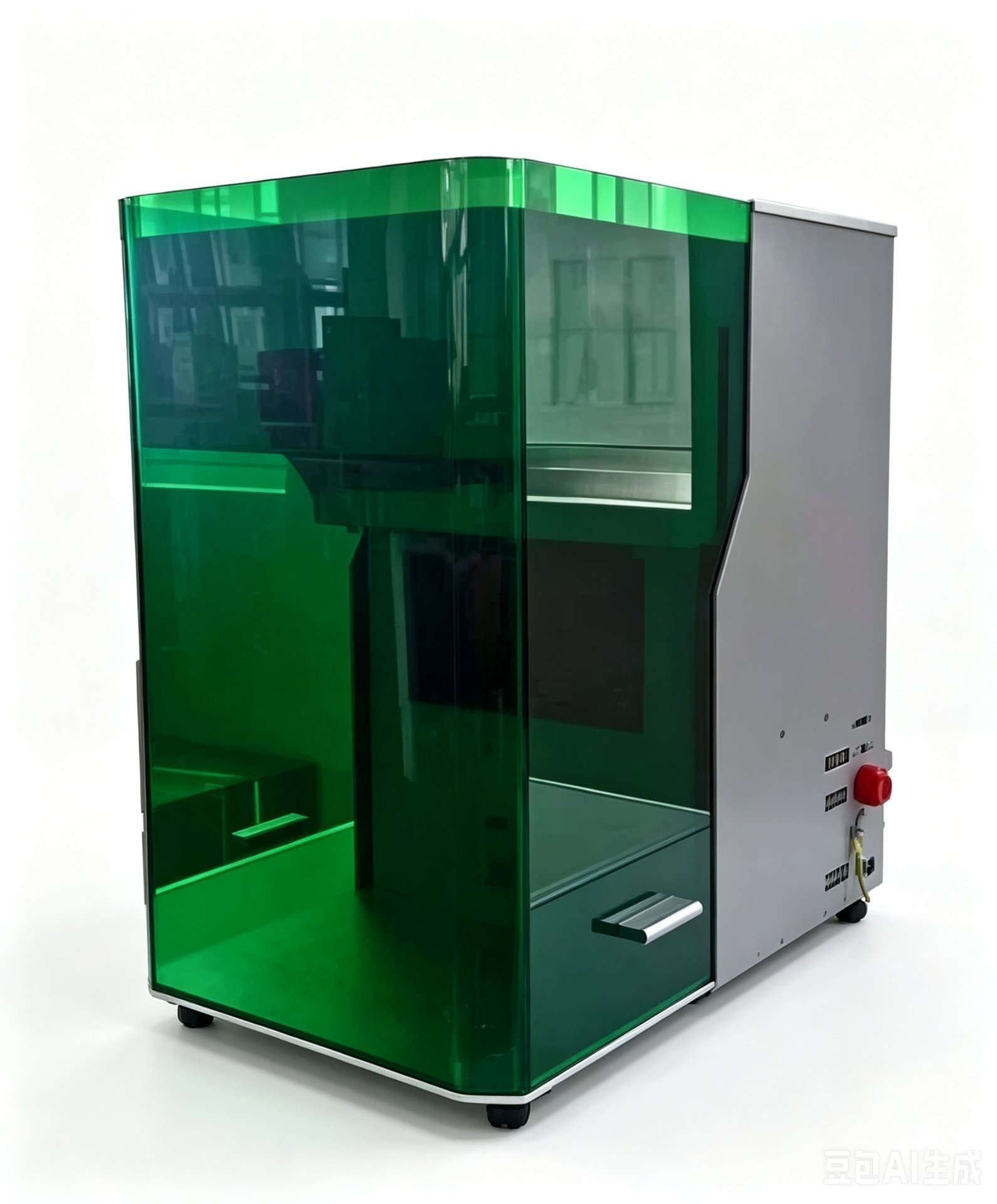

UV MARKING Series
PRODUCT INTRODUCTION
DM-U Series 355nm UV markers — floor-standing (DM-U10I), portable (DM-U5P), and standard configurations. 3W–10W output with photochemical cold marking at <40°C — zero thermal damage to sensitive substrates. ≤5000mm/s with 0.005mm minimum line width. For semiconductor wafer ID, flexible PCB marking, medical catheter UDI, and luxury glass engraving.
MAIN PARAMETERS
| Model | DM-U3 | DM-U5 | DM-U10 |
|---|---|---|---|
| Laser Power | 3W | 5W | 10W |
| Wavelength | 355nm | ||
| Marking Area | 110 x 110mm | 200 x 200mm | |
| Marking Speed | ≤5000 mm/s | ||
| Minimum Line Width | 0.005mm | ||
| Cold Processing | <40°C | ||
| Cooling | Air Cooled | ||
HOT-SELLING MODELS

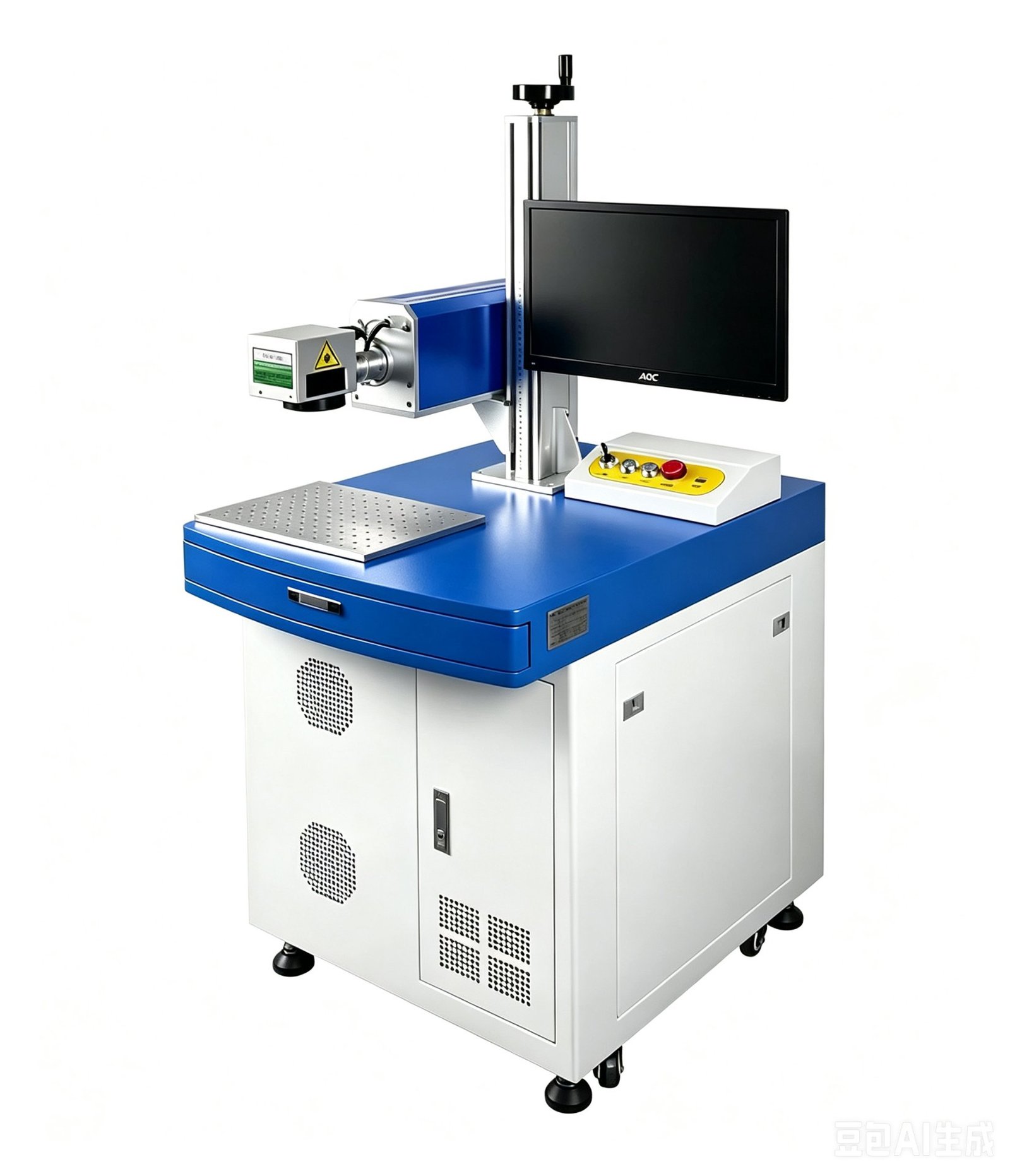

DM-U10I
Floor-standing UV Workstation
Floor-standing Z-axis column with integrated monitor and PC — designed for medical device UDI marking, electronics, and high-precision plastic components. Cleanroom-adjacent production ready.

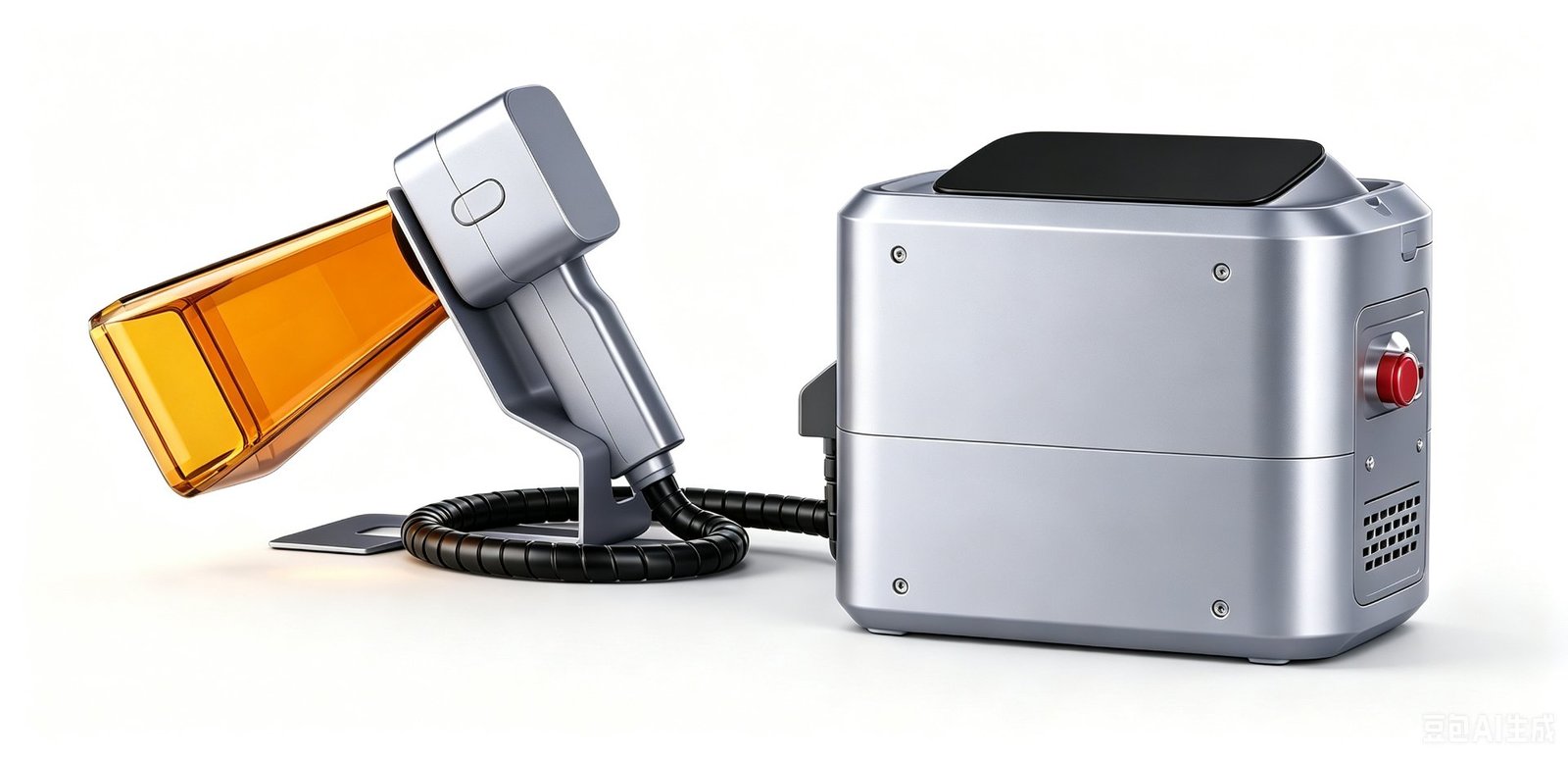

DM-U5P
Portable Handheld UV Marker
Portable handheld with separate compact laser source — 355nm cold marking for plastics, glass, and electronics. Damage-free on heat-sensitive substrates.
CORE ADVANTAGES
True Cold Marking
355nm UV photochemical ablation breaks molecular bonds directly. Minimal heat-affected zone — <40°C at surface, zero thermal damage to sensitive substrates.
Ultra-Fine Micro Marking
0.005mm minimum line width with sub-micron focusing. Built for semiconductor wafer ID, microchip marking, and precision electronics traceability.
Damage-Free on All Plastics
High absorption on PE, PP, PVC, ABS, polycarbonate, and silicone. Clean high-contrast marks without melting, charring, or material degradation.
Medical & Cleanroom Ready
Chemical-free, particulate-free process. FDA-compliant UDI marking for catheters, syringes, and implantables. Class 1 cleanroom compatible.
3D ENGRAVING Series
PRODUCT INTRODUCTION
DM-3D Series 355nm UV 3D engravers — compact (DM-3D3S) and large-format (DM-3D5W) configurations. Real-time Z-axis 3D galvanometer tracks curved, sloped, and stepped surfaces — eliminates handwork on molds and dies. 0.9W–5W adjustable output, M²≤1.1, ±0.008mm accuracy. For mold cavity texturing, coin & medal dies, automotive interior panels, and curved-surface 3D engraving.
MAIN PARAMETERS
| Model | DM-3D3 | DM-3D5 |
|---|---|---|
| Laser Wavelength | 355nm (UV) | |
| Repetition Rate | 20–80 kHz | 30–120 kHz |
| Pulse Width | 15–30 ns | 12–25 ns |
| Output Power Range | 30%–100% (0.9W–3W) | 20%–100% (1W–5W) |
| Beam Quality (M²) | ≤1.2 | ≤1.1 |
| Scanning Speed | 3000–7000 mm/s | 4000–10000 mm/s |
| Jumping Speed | 15000–20000 mm/s | 18000–25000 mm/s |
| Marking Area | 50×50mm (field lens) | 50×50mm (field lens) |
| Positioning Accuracy | ±0.01mm | ±0.008mm |
HOT-SELLING MODELS

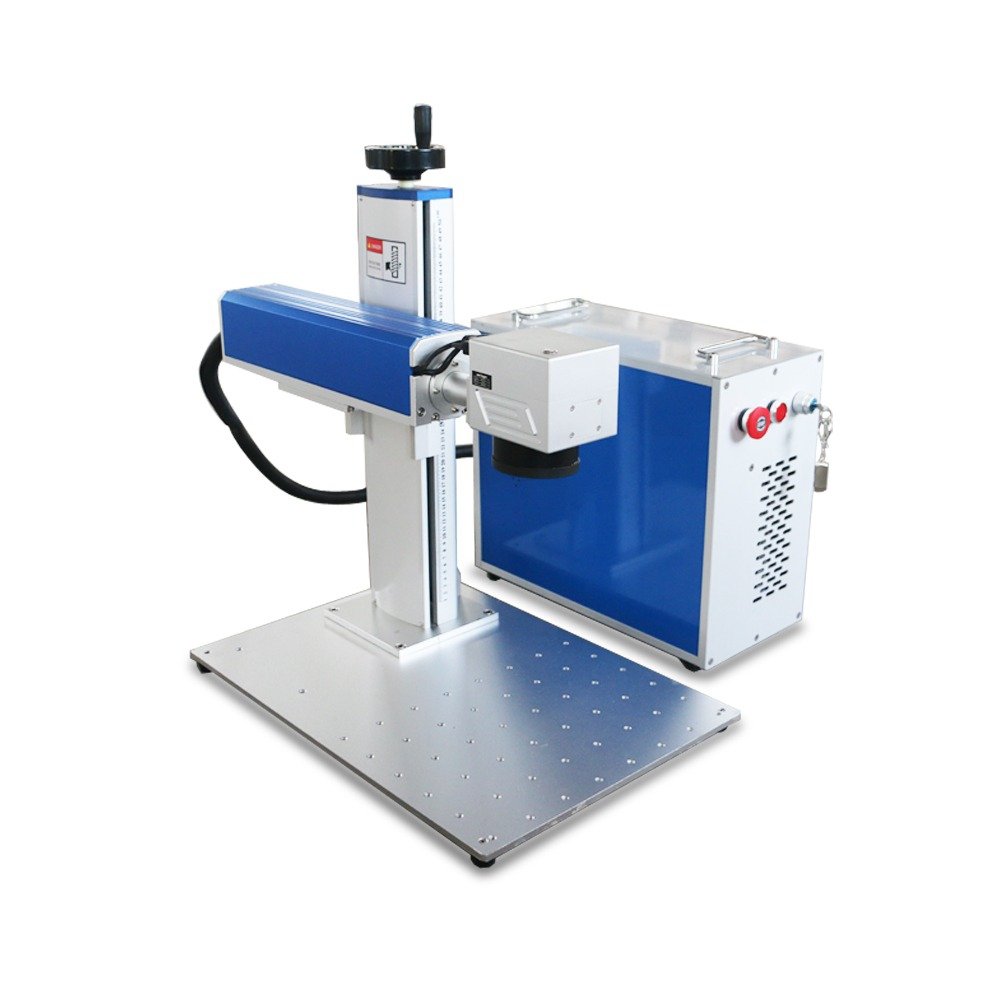

DM-3D3S
Compact 3D Engraving Workstation
Compact workstation with Z-axis lift and 3D galvanometer — real-time focus tracking for curved, sloped, and stepped surfaces. Built for mold texturing and precision engraving.

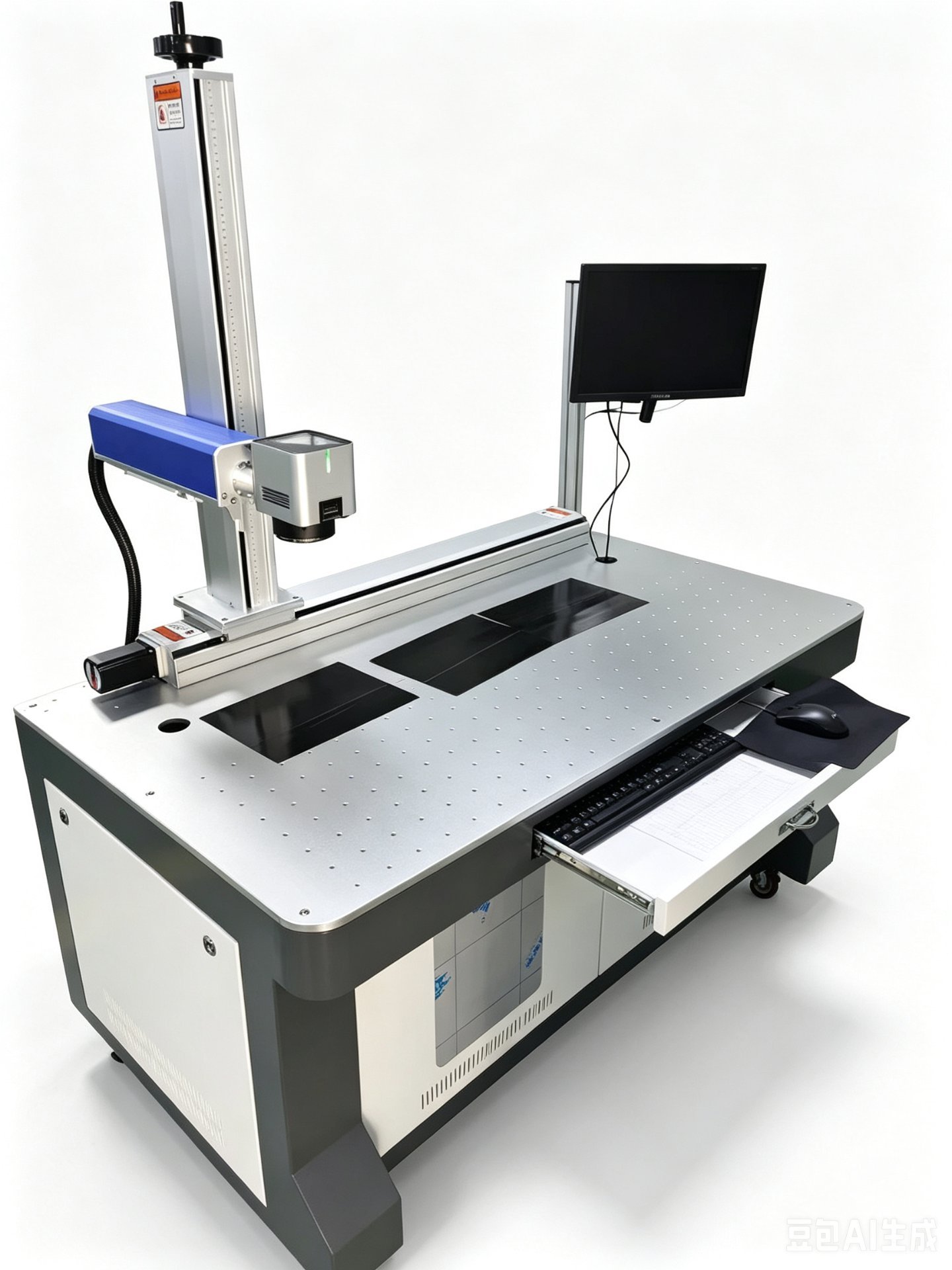

DM-3D5W
Large-Format 3D Engraver
Large-format system with extended worktable and M²≤1.1 beam quality. The professional choice for coin dies, tire molds, and large curved-surface components.
CORE ADVANTAGES
True 3D Dynamic Focus
3D galvanometer with real-time Z-axis tracking for crisp, uniform marking on curved, sloped, and stepped surfaces — eliminating handwork on molds and dies.
UV Cold Processing
355nm UV with ns-level pulse for photochemical ablation. Near-zero heat-affected zone — safe for precision molds and heat-sensitive components.
Flexible Parameter Control
Adjustable power range (20%–100%), pulse width, and repetition rate. Seamlessly switch from shallow texturing to deep engraving in seconds.
Precision Surface Mapping
±0.008mm positioning accuracy with field lens coverage. Delivers consistent detail across the entire marking field on the most demanding 3D contours.
