Professional-grade fiber laser cutting for industrial sheet metal fabrication, engineered for stable, high-speed continuous production.
Professional-grade fiber laser cutting for industrial sheet metal fabrication, available in three customizable formats — 3000 × 1530 mm, 4050 × 2050 mm, and 6100 × 2550 mm — powered by 1500W–6000W fiber laser sources. With 169 m/min linkage speed, 1.5G acceleration, and ±0.03 mm repeat accuracy, the rugged welded frame, integrated electrical control, and self-lubrication system ensure stable 24/7 operation.
| Parameter | DM-3015 |
|---|---|
| Processing Area | 3000 × 1530 mm |
| Laser Power | 1500W / 2000W / 3000W / 6000W |
| Custom Precision | ±0.05 mm/m |
| Repeat Positioning Accuracy | ±0.03 mm |
| Max Linkage Speed | 169 m/min |
| Max Acceleration | 1.5G |
| Table Load Capacity | 1020 kg |
| Rated Voltage & Frequency | 380V · 50Hz / 60Hz |
DM-3015-3000W

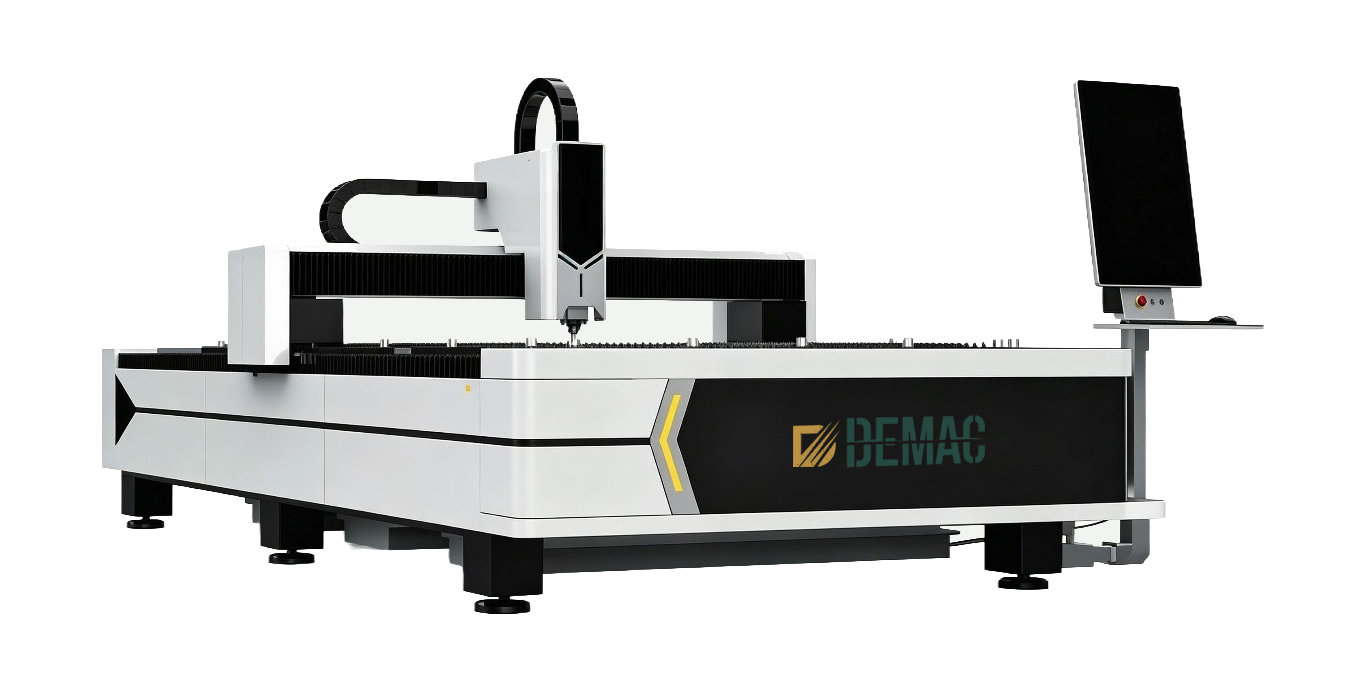

DM-4020-6000WDM-6025-6000WHeavy-duty welded bed supports precise, reliable long-term production.
Open-gantry access keeps material handling and cutting status visible.
Centralized controls simplify operation, diagnostics, and maintenance.
Automatic lubrication reduces service time and protects moving components.
