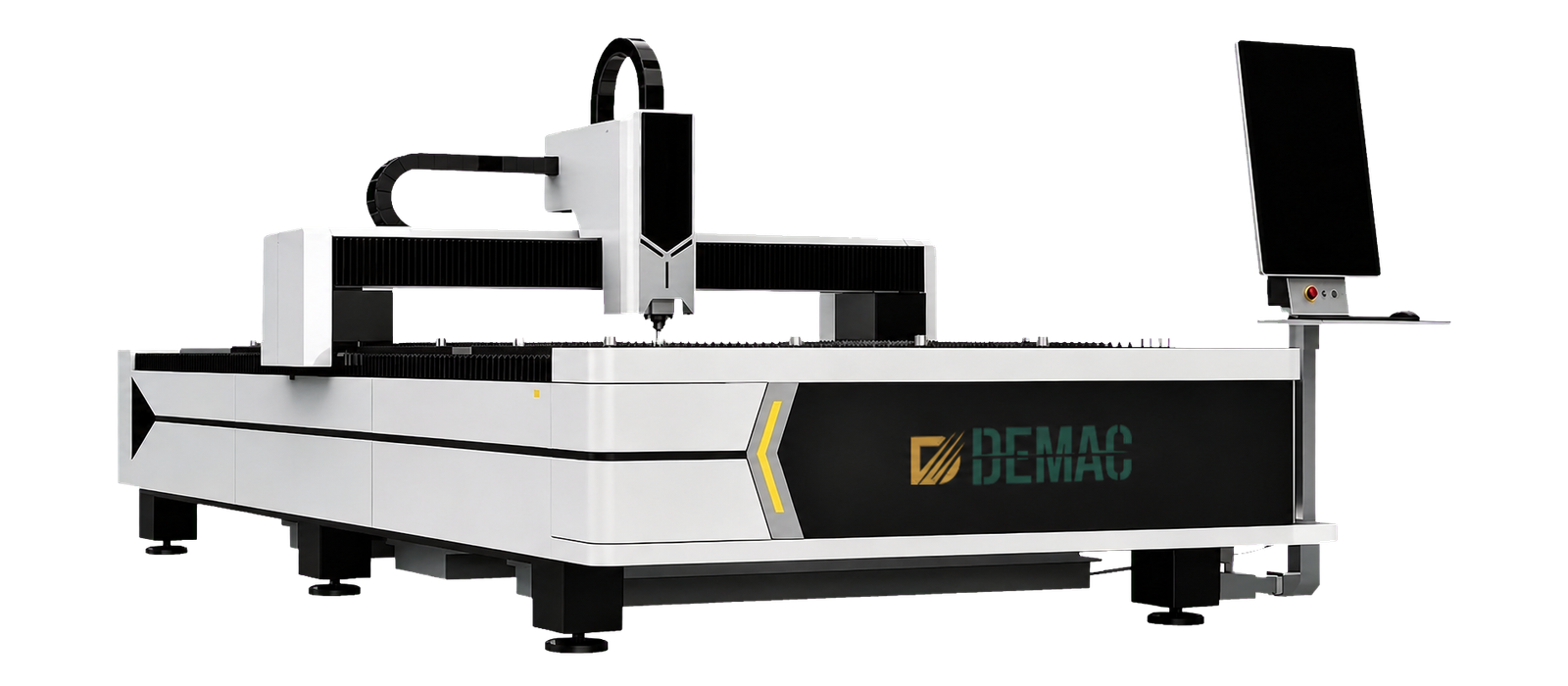

Sheet Metal Laser Cutting
PRODUCT INTRODUCTION
Professional-grade fiber laser cutting for industrial sheet metal fabrication, available in three customizable formats — 3000×1530mm, 4050×2050mm, and 6100×2550mm — powered by 1500W–6000W fiber laser sources. With 169 m/min linkage speed, 1.5G acceleration, and ±0.03mm repeat accuracy, the rugged welded frame, integrated electrical control, and self-lubrication system ensure stable 24/7 operation. The open-gantry layout provides clear visibility and intuitive operation — ideal for automotive, steel structure, construction equipment, and sheet metal job shops worldwide.
MAIN PARAMETERS
| Model | DM-3015 | DM-4020 | DM-6025 |
|---|---|---|---|
| Processing Area (Customizable) | 3000mm x 1530mm | 4050mm x 2050mm | 6100mm x 2550mm |
| Laser Power | 1500W / 2000W 3000W / 6000W | 1500W / 2000W 3000W / 6000W | 1500W / 2000W 3000W / 6000W |
| Custom Precision | ±0.05mm/m | ±0.05mm/m | ±0.05mm/m |
| Repeat Positioning Accuracy | ±0.03mm | ±0.03mm | ±0.03mm |
| Max Linkage Speed | 169 m/min | 169 m/min | 169 m/min |
| Max Acceleration | 1.5G | 1.5G | 1.5G |
| Table Load Capacity | 1020KG | 1600KG | 4700KG |
| Rated Voltage & Frequency | 380W 50HZ/60HZ | 380W 50HZ/60HZ | 380W 50HZ/60HZ |
HOT-SELLING MODELS
3000×1530mm work area with 3000W fiber laser. The global best-seller for OEM job shops and automotive tier suppliers — high throughput at the lowest running cost.
Global Top Seller4050×2050mm large-format 6000W system. The sweet spot for steel structures and construction equipment — maximum coverage without premium power cost.
Enterprise Favorite6100×2550mm heavy-plate flagship with 6000W. Built for shipbuilding and ultra-large sheet metal components, with 4700KG table load capacity.
Flagship ModelCORE ADVANTAGES
Rugged Frame & Stable Performance
Clear Loading & Cutting Visibility
Integrated Electrical Control System
Fully Automatic Self-Lubrication System
Easy to Learn & Easy to Service
Tube Laser Cutting
PRODUCT INTRODUCTION
Dedicated laser tube and profile cutting center for round, square, rectangular, and special-shaped tubes. Two models — DM-160 and DM-220 — powered by 1500W–6000W fiber laser sources, delivering ±0.03mm repeat accuracy and chuck rotation up to 200 r/min. Supports 3D bevel cutting with fully automatic variants offering auto-loading, auto-feeding, and auto-sorting. Smart Pressure Feedback, Automatic Tube Support, and Premium Brand Chucks ensure deformation-free, high-speed multi-profile cutting — trusted by furniture, automotive chassis, scaffolding, agricultural machinery, and fitness equipment manufacturers.
MAIN PARAMETERS
| Model | DM-160 | DM-220 |
|---|---|---|
| Laser Power | 1500W / 2000W 3000W / 6000W | |
| Custom Precision | ±0.05mm/m | |
| Repeat Positioning Accuracy | ±0.03mm | |
| Rotation Speed | 200 r/min | 160 r/min |
Fully automatic and semi-automatic machines share identical parameters. Fully automatic models feature auto-loading, auto-feeding, and auto-sorting.
HOT-SELLING MODELS
DM-160 model with 200 r/min chuck rotation and 3000W laser. The volume leader for furniture and light structural tube fabrication, proven in high-mix production.
Volume LeaderDM-220 model with 160 r/min chuck and 4000W laser. Best-seller for chassis, handrails, and 3D bevel-cut welded structures at ±0.03mm accuracy.
Best SellerDM-220 high-power 6000W configuration. Built for heavy-wall tubes and large-scale construction and scaffolding projects.
Premium ModelCORE ADVANTAGES
Smart Pressure Feedback
Auto-adjusts clamping force by tube diameter & wall thickness, ensuring deformation-free grip.
Automatic Tube Support
Prevents long-tube deflection during cutting, ensuring stable support across the full length.
Premium Brand Chucks
Industry-leading brand chucks deliver superior stability, proven reliability & high-precision clamping.
High-Speed Multi-Profile Cutting
Effortlessly cuts round, square, rectangular & special-shaped tubes at high speed with clean edges.
Full Enclosure Fiber Laser Cutter
PRODUCT INTRODUCTION
Fully enclosed fiber laser cutting system combining high-performance laser technology with a protective cabinet design for maximum operator safety, fume containment, and environmental compliance. Three models — DM-30158, DM-40208, and DM-60258 — with processing areas from 3050×1520mm to 6100×2550mm, powered by 1000W–6000W fiber laser sources. Delivers 169 m/min linkage speed, 1.5G acceleration, and ±0.03mm repeat accuracy. Smart Safety Enclosure with AI-vision human detection, Eco Dust Extraction, Dual-Pallet Quick Exchange, and simultaneous cutting & loading for zero-downtime production — ideal for machinery enclosures, construction equipment, sheet metal processing, automotive, elevator, and kitchenware manufacturing.
MAIN PARAMETERS
| Model | DM-30158 | DM-40208 | DM-60258 |
|---|---|---|---|
| Processing Area (Customizable) | 3050mm x 1520mm | 4050mm x 2050mm | 6100mm x 2550mm |
| Laser Power | 1000W / 1500W / 2000W / 3000W / 6000W | ||
| Custom Precision | ±0.05mm/m | ||
| Repeat Positioning Accuracy | ±0.03mm | ||
| Max Linkage Speed | 169 m/min | ||
| Max Acceleration | 1.5G | ||
| Rated Voltage & Frequency | 380W 50HZ/60HZ | ||
HOT-SELLING MODELS
3050×1520mm fully enclosed 1500W system. Safety Champion — Class 1 laser compliance for electronics and precision sheet metal shops.
Safety Champion3050×1520mm enclosed 3000W performer. Best-seller for medical device and precision manufacturing environments.
Best Seller4050×2050mm large-format enclosed 6000W system. Enterprise Pick for high-volume precision production under strict safety regulations.
Enterprise PickCORE ADVANTAGES
Smart Safety Enclosure
AI-vision safety enclosure with real-time human detection — system automatically halts cutting when personnel enter the work zone.
Eco Dust Extraction System
Fully sealed cabin integrated with high-efficiency fume extraction, ensuring clean, eco-compliant production with no external venting required.
Dual-Pallet Quick Exchange
Pneumatic dual-pallet shuttle system enables rapid table swap, eliminating idle time and significantly lowering per-part operating cost.
Double Efficiency · Zero Downtime
Simultaneous cutting and loading/unloading doubles throughput without compromising precision — continuous production, zero downtime.
Wide Industry Applications
Ideal for machinery enclosures, construction equipment, sheet metal processing, automotive manufacturing, elevator manufacturing, kitchenware & cabinetry, and more.
Precision & Desktop Cutting
PRODUCT INTRODUCTION
Compact benchtop fiber laser cutter — DM KPL-1500 — delivering industrial-grade precision in a 950×820×780mm, 220kg footprint. Processes a 200×300mm work area with 0.03mm positioning and 0.02mm repeat accuracy at 50 m/min. Built on an integrated welded frame with Taiwan Hiwin guide rails and Taiwan TBL ball screws, driven by Leisai servo motors and controlled via a multi-function handheld controller supporting G-code, DXF, DWG, and more. Micro-hole sealing technology achieves cutting accuracy up to ±0.01mm with smooth, burr-free edges — trusted by precision electronics, fine jewelry, micro-fabrication, laboratories, R&D centers, and artisan workshops worldwide.
MAIN PARAMETERS
| Parameter | DM KPL-1500 |
|---|---|
| Table Mounting Method | Fixed Table |
| Max Linkage Speed | 50 m/min |
| Max Acceleration | 0.5G |
| Positioning Accuracy | 0.03mm |
| Repeat Positioning Accuracy | 0.02mm |
| Laser Source | Maxphotonics / Raycus / JPT / GW |
| Laser Head | Jiaqiang |
| Machine Bed Structure | Integrated Welded Frame |
| Intelligent Control System | Multi-function Handheld Controller |
| File Format Recognition | G-code / DXF / DWG / PLT / ENG |
| Z-axis Travel / Max Linkage Speed | 100mm · 50 m/min |
| X / Y / Z Servo Motors & Drivers | Leisai |
| Guide Rails | Taiwan Hiwin |
| Ball Screws | Taiwan TBL |
| Water Chiller | HG-1500L |
| Cooling & Gas Protection | Inert Gas |
| Power Supply Capacity (1.5kW Laser) | 48 KVA / 220A |
| Control System | Jiaqiang / WiFi Wireless Control |
| Processing Area | 200 × 300mm |
| Table Load Capacity | 60kg |
| Machine Dimensions | 950 × 820 × 780mm |
| Machine Weight | 220kg |
HOT-SELLING MODELS
200×300mm desktop precision cutter with 1.5kW laser and ±0.01mm micro-fabrication accuracy. The most popular benchtop for labs, universities, jewelry studios, and R&D centers — compact 950×820×780mm footprint, 220V plug-and-play, 60kg load capacity.
Most PopularCORE ADVANTAGES
Ultra-Precision Engineering
Adopts micro-hole sealing technology and precision engineering, achieving cutting accuracy up to ±0.01mm. Ideal for precision electronic components, fine jewelry, and micro-fabrication with smooth, burr-free cutting edges.
Compact & Flexible
Compact footprint and space-saving design adapt flexibly to laboratories, small workshops, and diverse production environments with no installation hassle.
High-Speed & Reliable
High-performance drive system combined with intelligent CNC control delivers fast cutting and high throughput. Multi-layer safety protection ensures stable, reliable operation during extended production runs.
Versatile Material Compatibility
Supports a wide range of hard and soft materials including metals, ceramics, and plastics — meeting diverse application needs across industrial manufacturing, scientific R&D, and artisan workshops.
