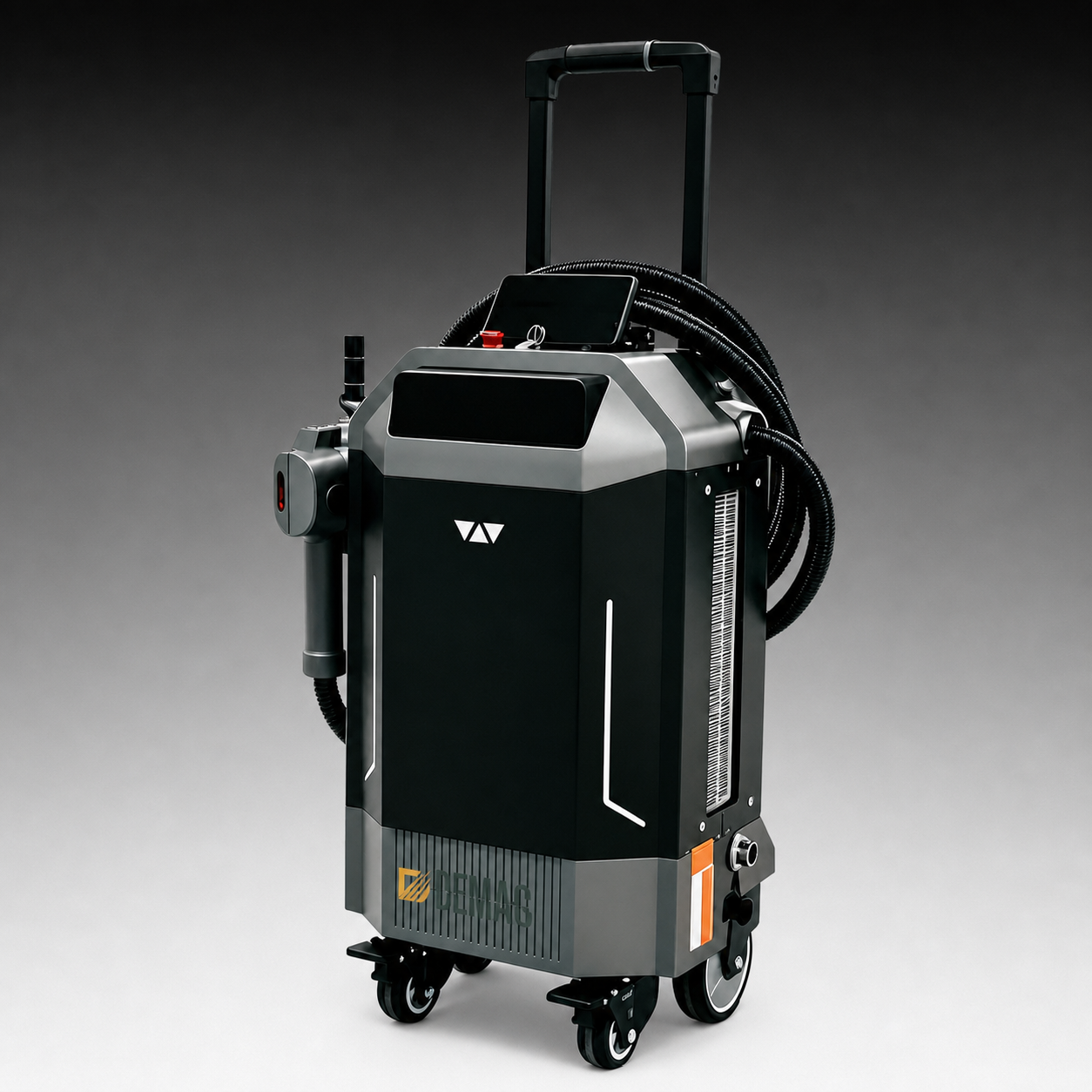

TROLLEY CASE LASER CLEANING Series
PRODUCT INTRODUCTION
The DEMAC Trolley Case Laser Cleaning Series combines industrial cleaning power with grab-and-go mobility. The integrated trolley design features a retractable handle, heavy-duty casters, and a compact wheeled enclosure — push it from station to station, dock it next to any workpiece, and start cleaning in under 60 seconds. Powered by continuous-wave and pulsed fiber lasers (200W–1000W), it handles rust, paint, coatings, and oxide layers on structural steel, weld seams, marine surfaces, and on-site maintenance work. The all-in-one design integrates the laser source, cleaning gun, 10m fiber, control panel, and fume extraction into a single mobile unit — no assembly, no cabinet installation, no fixed infrastructure required.
MAIN PARAMETERS
| Model | TROLLEY 200W | TROLLEY 500W | TROLLEY 1000W |
|---|---|---|---|
| Laser Power | 200W | 500W | 1000W |
| Cleaning Width | 50mm | 80mm | 120mm |
| Cleaning Efficiency | 3 m²/hr | 8 m²/hr | 15 m²/hr |
| Fiber Length | 10m | 15m | |
| Pulse Frequency | 10-50 kHz | ||
| Cooling | Air | Water | Water |
HOT-SELLING MODELS
Entry-level wheeled cleaner — air-cooled, ideal for mold cleaning and light rust removal in workshops.
Most PopularBalanced power for industrial rust and paint removal — the weld preparation champion at the best price-performance ratio.
Best SellerMaximum wheeled cleaning power — tackles thick coatings and heavy corrosion with industrial water cooling.
Heavy DutyCORE ADVANTAGES
Grab-and-Go Mobility
Retractable trolley handle and heavy-duty casters — push the entire system between workstations without disassembly.
All-in-One Integration
Laser source, cleaning gun, 10m fiber, control panel, and fume extraction combined in a single wheeled unit — plug in and clean.
Industrial Power Range
200W to 1000W continuous-wave and pulsed fiber sources — covers everything from light surface activation to heavy paint removal.
Workshop-Tough Build
Reinforced steel enclosure with IP54 protection, vibration-damped optics, and oil-resistant casters — built for daily shop floor use.
BACKPACK PORTABLE LASER CLEANING Series
PRODUCT INTRODUCTION
The DEMAC Backpack Portable Laser Cleaning Series delivers professional cleaning power in the most compact form factor available. With a shoulder-strap and backpack-carry design, operators can climb scaffolding, work on vertical surfaces, or clean overhead structures without any trolley, cart, or stationary setup. Powered by short-pulse fiber lasers (50W–200W) with optimized peak pulse energy for selective ablation, this series is the go-to choice for on-site maintenance, historical restoration, ship interior work, and high-altitude cleaning tasks. Dual 110V/220V power input with optional battery pack enables true field operation in any environment.
MAIN PARAMETERS
| Model | BACKPACK 50W | BACKPACK 100W | BACKPACK 200W |
|---|---|---|---|
| Laser Power | 50W | 100W | 200W |
| Cleaning Width | 20mm | 40mm | 60mm |
| Total Weight | <12kg | <15kg | <18kg |
| Fiber Length | 3m / 5m (Optional) | ||
| Pulse Energy | Up to 1.5 mJ | ||
| Power Input | 110V / 220V + Battery | ||
HOT-SELLING MODELS
The lightest laser cleaner in the lineup — under 12kg total, ideal for overhead work, scaffolding, and tight-space restoration.
LightestBalanced power-to-weight ratio — the field operator's choice for general maintenance, weld touch-up, and outdoor cleaning.
Most VersatileMaximum portable cleaning power in a backpack form factor — the only 200W truly-mobile laser cleaner on the market.
Power PackCORE ADVANTAGES
Truly Mobile Operation
Backpack + shoulder-strap design enables operators to climb ladders, walk scaffolding, and work on vertical surfaces without any trolley or cart.
Ultralight Construction
Aluminum-magnesium alloy housing and carbon-fiber cleaning gun — total system weight under 18kg even at 200W output.
Dual Power Modes
110V/220V AC input or optional lithium battery pack for true off-grid operation — clean anywhere power is unavailable.
Selective Ablation
Short-pulse fiber laser targets only the contaminant layer — preserves the underlying substrate for sensitive restoration work.

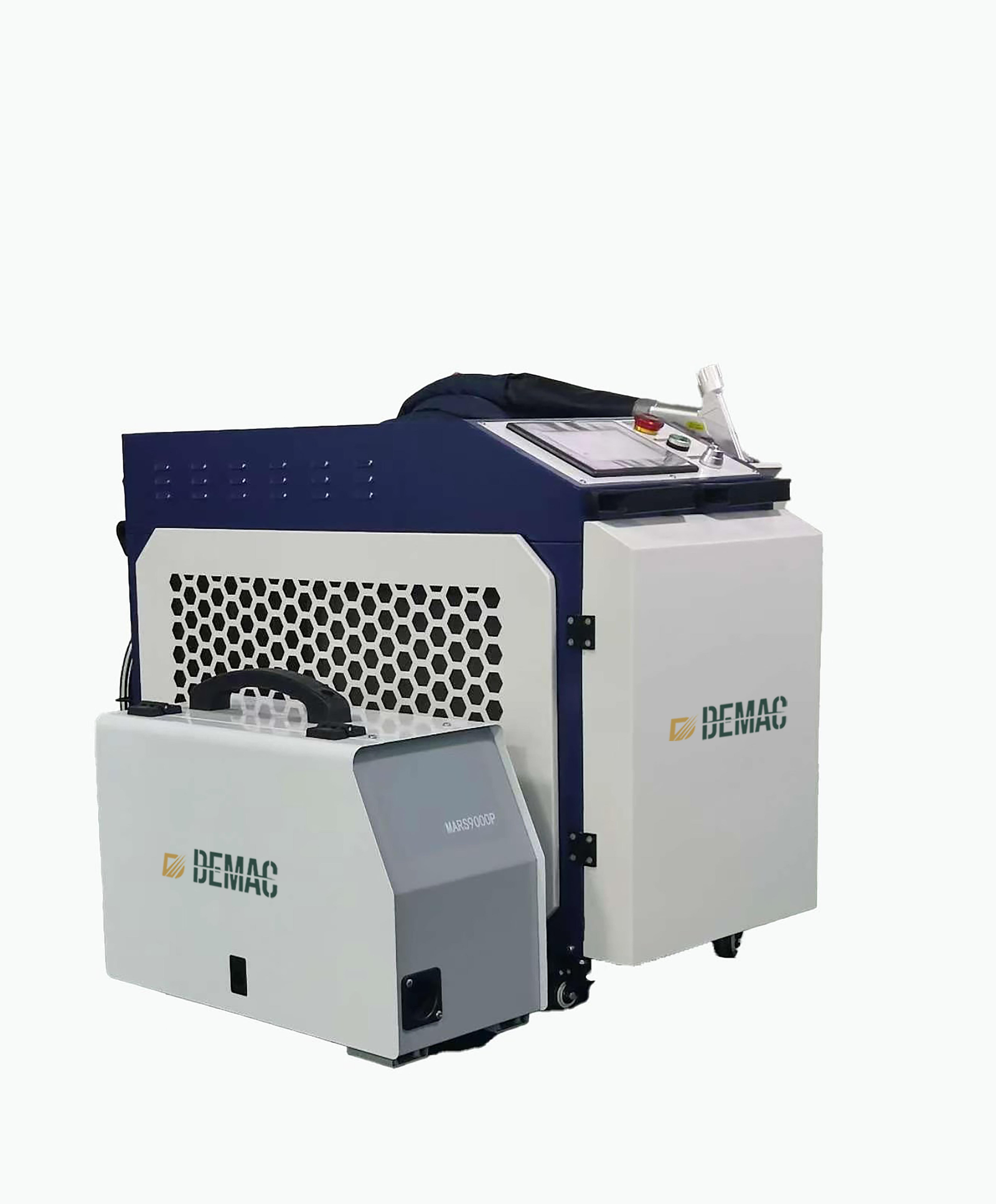

CABINET-TYPE HANDHELD LASER CLEANING Series
PRODUCT INTRODUCTION
The DEMAC Cabinet-type Handheld Laser Cleaning Series features a freestanding, full-size industrial enclosure engineered for high-throughput production environments. The integrated cabinet houses the laser source, water cooling system, fume extraction, and control electronics — operators simply pick up the handheld cleaning gun and start work. Powered by continuous-wave fiber lasers (500W–2000W), this series delivers industrial-grade cleaning rates for automotive pre-coating, weld preparation, mold cleaning, and high-volume production runs. The closed cabinet design provides IP54 protection for harsh workshop environments and supports 24/7 continuous duty cycles with stable beam quality.
MAIN PARAMETERS
| Model | CABINET 500W | CABINET 1000W | CABINET 2000W |
|---|---|---|---|
| Laser Power | 500W | 1000W | 2000W |
| Cleaning Width | 100mm | 150mm | 200mm |
| Cleaning Efficiency | 8 m²/hr | 15 m²/hr | 25 m²/hr |
| Fiber Length | 10m | 15m | |
| Cooling | Water (Built-in Chiller) | ||
| Duty Cycle | 100% / 24-7 Continuous | ||
HOT-SELLING MODELS
Standard workshop cabinet with built-in chiller and fume extraction — the workhorse for daily production cleaning tasks.
Workshop StandardMid-power production cabinet for automotive pre-coating, weld prep, and mold cleaning at industrial throughput.
Best SellerHeavy-duty cabinet for shipyards, steel structure fabrication, and continuous 24/7 industrial cleaning operations.
Industrial HeavyCORE ADVANTAGES
Fully Integrated Cabinet
Laser source, water chiller, fume extraction, and control electronics in one IP54-rated enclosure — zero external plumbing required.
24/7 Continuous Duty
100% duty cycle rated for three-shift production. Industrial water cooling and vibration-damped optics maintain stable beam quality.
IP54 Workshop Protection
Sealed enclosure protects optics and electronics from dust, splashing coolant, and airborne particles in harsh shop environments.
Handheld Flexibility
Operators work freely with the lightweight cleaning gun connected by 10–15m fiber — no robotic programming required for variable parts.
PULSED LASER CLEANING Series
PRODUCT INTRODUCTION
The DEMAC Pulsed Laser Cleaning Series delivers precision cleaning with nanosecond fiber laser pulses for the most demanding applications where substrate integrity is paramount. Each pulse delivers controlled peak power for selective ablation of contaminants without thermal damage to the substrate. From semiconductor wafer processing to aerospace turbine blade de-coating, museum artifact restoration to medical device sterilization, this series operates at pulse frequencies from 10kHz to 500kHz with adjustable pulse duration. The compact laser head in a ruggedized carrying case protects the optics during transport and deployment to field locations.
MAIN PARAMETERS
| Model | PULSE 50W | PULSE 100W | PULSE 200W |
|---|---|---|---|
| Laser Power | 50W | 100W | 200W |
| Pulse Duration | 10–200 ns | ||
| Pulse Frequency | 10–500 kHz | ||
| Cleaning Spot Size | 20μm | 30μm | 50μm |
| Substrate Temp Rise | <5°C | <8°C | <12°C |
| Form Factor | Carrying-Case Laser Head + Cabinet | ||
HOT-SELLING MODELS
Wafer-level oxide and particle removal. Class 1 cleanroom compatible with SECS/GEM protocol — the precision tool for fab applications.
Wafer GradeTurbine blade coating removal and bond-prep surface activation. OEM-approved nanosecond pulses preserve base material microstructure.
Aerospace CertifiedMuseum-grade artifact conservation and medical device surface treatment. Non-contact, reversible cleaning for priceless and sensitive parts.
Conservation GradeCORE ADVANTAGES
Nanosecond Pulse Control
Ultra-short 10–200 ns pulses deliver precise energy that ablates contaminants before heat can conduct into the substrate.
Near-Zero Thermal Impact
Substrate temperature rise under 5°C at 50W. Safe for heat-sensitive alloys, composites, thin films, and historical artifacts.
Carrying-Case Laser Head
The compact pulse laser head ships in a ruggedized carrying case — deploy to fab, lab, museum, or field site in minutes, not hours.
Non-Contact Preservation
Zero mechanical abrasion, zero chemical alteration — the only cleaning method approved for priceless artifact restoration and medical implants.
